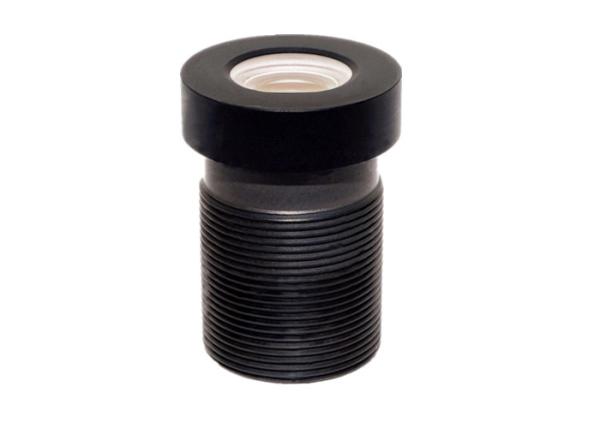

1/3" 5.49mm F1.6 2Megapixel M12x0.5 mount Low-distortion Lens for ADAS car system, megapixel wide-angle lens for sport DV/Car DVR

MODELl 130549MPF-M12
SENSOR SIZE 1/3"
FOCAL LENGTH(EFL) 5.49mm
F.O.V. (D*H*V) 66°*52°*38°
RESOLUTION 2MP
APERTURE F1.6
OPTICAL DISTORTION <-16.6%
MOUNT M12x0.5 (M10x0.5 optional)
B.F.L.(O) 4.99mm
B.F.L.(M) 2.48mm
T.T.L. 21.08mm

DIMENSION Φ14x18.6mm

LENS STRUCTURE 6G+IR

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter

- M12/M10 mount option
- 650nm/850nm/940nm IR filter optional

We are professional supplier of CCTV & Video Lenses in China. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, ...

These products have countless applications in the security, medical, military, environment monitoring, aerospace, and other high-tech industries, and they are also used in medical imaging equipment, mini projectors, and optical, laser and infrared instruments.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
