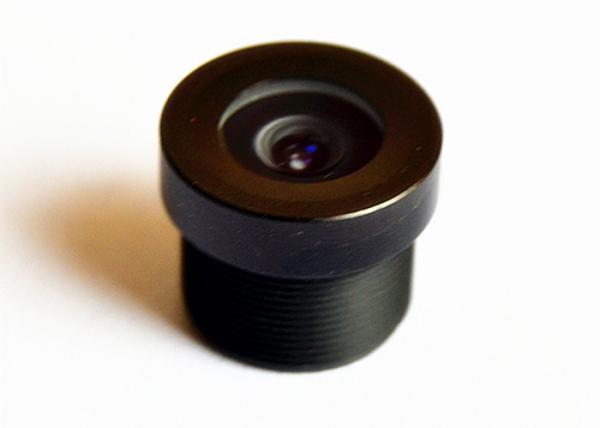

1/3.2" 2.65mm F2.0 5Megapixel M12 mount 161degree Wide Angle Lens for AR0330/OV5653/OV9712/OV7725/NT99141, Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror

MODEL 1320265MPF-B1
SENSOR FORMAT 1/3.2"
MAX IMAGE CIRCLE Φ6.0mm
FOCAL LENGTH(EFL) 2.65mm
F.O.V. (D*H*V) 1/3.2” AR0330: 161°*121.5°*60°, 1/4” OV7725: 120°*88.2°*62.2°, 1/4” OV9712: 110°*85.2°*51.2°
RESOLUTION 5MP
APERTURE F2.0 (F2.4 optional)
OPTICAL DISTORTION 1/3.2” AR0330: H -10.2%, V -49.48%; 1/4” OV7725: H -13.08%, V -26.21%; 1/4” OV9712: H -8.2%, V -25.0%
MOUNT M12X0.5
B.F.L.(O) 5.36mm
B.F.L.(M) 3.96mm
T.T.L. 16.2mm
LENS CONSTRUCTURE 5G+IR

DIMENSION(mm) Φ14x12.24
RELATIVE ILLUMINATION 1/3.2” AR0330: >76%; 1/4” OV7725: >81%; 1/4” OV9712: >82.9%
IR COATING 640±8NM AT: 50%
CHIEF RAT ANGLE 1/3.2” AR0330: <19.2°; 1/4” OV7725: <15.7°; 1/4” OV9712: <13.2°

MODEL 1320265MP-B2
SENSOR FORMAT 1/3.2"
MAX IMAGE CIRCLE Φ6.0mm
FOCAL LENGTH(EFL) 2.65mm
F.O.V. (D*H*V) 1/3.2” AR0330: 161°*121.5°*60°, 1/4” OV7725: 120°*88.2°*62.2°, 1/4” OV9712: 110°*85.2°*51.2°
RESOLUTION 5MP
APERTURE F2.0 (F2.4 optional)
OPTICAL DISTORTION 1/3.2” AR0330: H -10.2%, V -49.48%; 1/4” OV7725: H -13.08%, V -26.21%; 1/4” OV9712: H -8.2%, V -25.0%
MOUNT M12X0.5
B.F.L.(O) 5.36mm
B.F.L.(M) 4.96mm
T.T.L. 16.17mm
LENS CONSTRUCTURE 5G (IR filter optional)

DIMENSION(mm) Φ14x11.24
RELATIVE ILLUMINATION 1/3.2” AR0330: >76%; 1/4” OV7725: >81%; 1/4” OV9712: >82.9%
IR COATING 640±8NM AT: 50%
CHIEF RAT ANGLE 1/3.2” AR0330: <19.2°; 1/4” OV7725: <15.7°; 1/4” OV9712: <13.2°

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12 mount is optional.
