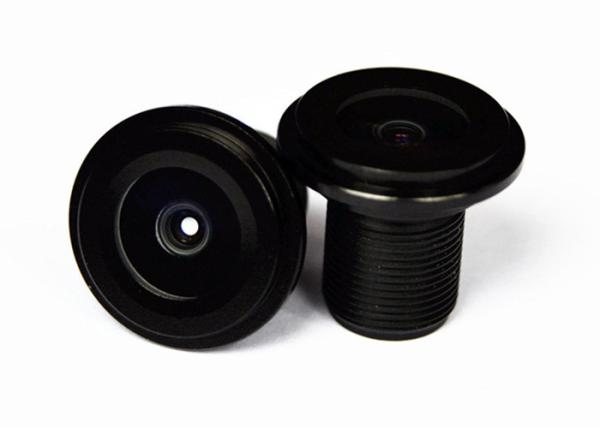

Waterproof 1/4" 2.3mm F2.6 Megapixel M8*0.5 Mount 124degree Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror, 2.3mm M8 lens for OV9712/JX-H42 sensors

Model 14023MPF-M8(W)
IMAGE FORMAT 1/4"
MAX IMAGE CIRCLE Ø 5.1mm
FOCAL LENGTH 2.3mm
F.O.V (D*H*V) OV9712: 124°*97°*57°; JX-H42: 121°*98°*52°
DISTORTION OV9712: H -11%, V -32.9%; JX-H42: H -9.5%, V -33.5%
APERTURE F2.6
RESOLUTION MP
MOUNT M8xP0.5
IRIS Fixed
B.F.L. 3.73mm
F.B.L. 1.67mm
T.T.L. 14.88 mm
DIMENSION Φ14×(12.81±0.3)mm
LENS COMPOMENT 4G+IR
CUT FREQUENCY AT 50% 640±8nm

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12 mount is optional.

We are professional supplier of CCTV & Video Lenses in China. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, ...

These products have countless applications in the security, medical, military, environment monitoring, aerospace, and other high-tech industries, and they are also used in medical imaging equipment, mini projectors, and optical, laser and infrared instruments.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
