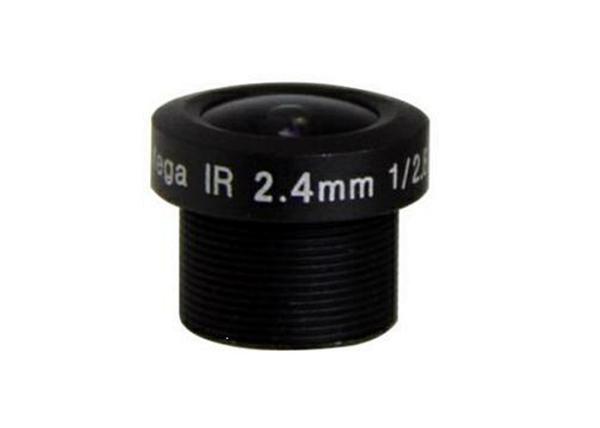

1/2.8" 2.4mm F2.0 1080P 3Megapixel M12*0.5 mount S-mount 163degree wide angle Lens for 1/2.8" 1/3" 1/3.2" 1/4" sensors, 2.4mm M12 wide angle lens for AR0130/IMX225/OV4689/IMX137/OV9712 etc.

Model 128024MP
SENSOR 1/2.8" CCD/CMOS
FOCAL LENGTH 2.4mm
RESOLUTION 3MP
F.O.V.(H) 1/2.8" 128°, 1/3" 113°
APERTURE F2.0

TV DISTORTION <-30%

MOUNT M12XP0.5
IRIS Fixed
M.O.D. 0.3m
B.F.L. 4.8mm
T.T.L. 17.3mm

R.I. >40%

C.R.A. <14°

LENS CONSTRUCTURE 6G
DIMENSION Φ15*12.5mm

Tips:
- 650nm/850nm/940nm IR filter optional

- FOV(DxHxV) on different sensors:

• OV9712 117°x101°x56°
• IMX137 108°x94°x42°
• OV4689 141°x122°x67°
• IMX225 163°x128°x95°
• AR0130 163°x128°x95°
