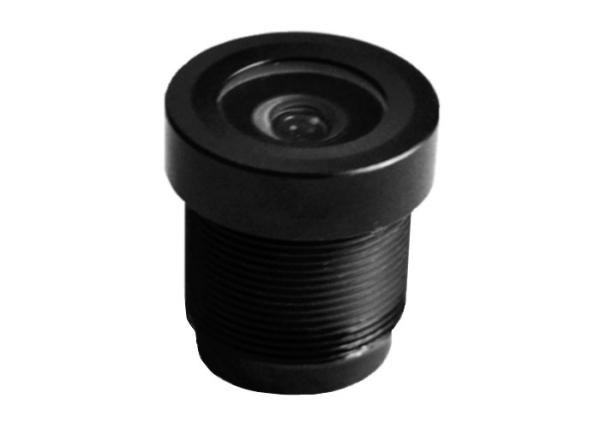

Waterproof IP67 automotive camera lens, 1/2.7" 3.7mm F2.4 5Megapixel S-mount 121Degree Wide Angle Lens for OV2710/AR0330/OV4689, IP67 waterproof megapixel wide-angle lens for sport DV/Car DVR

MODEL 127037MPF(W)
SENSOR SIZE 1/2.7" OV2710, 1/3" AR0330
MAX IMAGE CIRCLE Φ7.5mm
FOCAL LENGTH(EFL) 3.7mm
F.O.V. (D*H*V) OV2710: 121.2°*99.6°*51.8°; AR0330: 107°*85°*54.2°
RESOLUTION 5MP
APERTURE F2.4
OPTICAL DISTORTION OV2710: H -9.2%, V -33.8%; AR0330: H -10%, V -24.7%
MOUNT M12X0.5
B.F.L.(O) 6.18mm
B.F.L.(M) 3.18mm
T.T.L. 18.00mm

DIMENSION Φ14x14.83mm

R.I. OV2710 >80%; AR0330 >83%

C.R.A OV2710 <22.67°; AR0330 <21°
LENS CONSTRUCTURE 5G+IR

PROTECTION IP67

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
