1/3" 1.07mm F2.2 5Megapixel M12x0.5 mount 185degrees IR Fisheye Lens for OV5653/AR0330, 1.07mm S-mount panoramic camera IR fisheye lens for 1/3" 1/3.2" sensors

MODEL 130107MP
IMAGE FORMAT 1/3"
FOCAL LENGTH(mm) 1.07
MAX IMAGE CIRCLE Φ3.15mm
F.O.V. 185°(D)*185°(H)*185°(V)
RESOLUTION 5MP
APERTURE F2.2
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.1
M.B.F.(mm) 4.3 (in air)

T.T.L.(mm) 26.0 (in air)
DIMENSION(mm) Φ18x21.6

OPERATING TEMPERATURE -30℃～+70℃

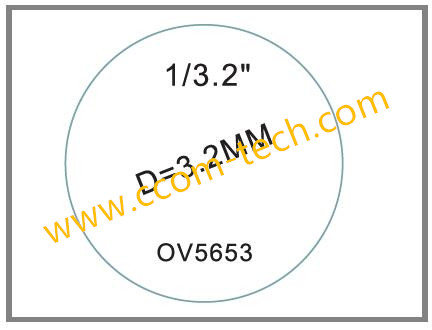

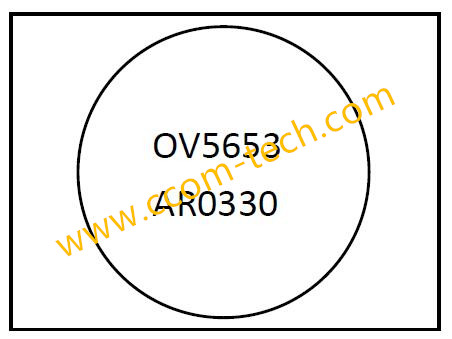

Effect on OV5653/OV0330:

We are professional supplier of CCTV & Video Lenses in China. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, ...

These products have countless applications in the security, medical, military, environment monitoring, aerospace, and other high-tech industries, and they are also used in medical imaging equipment, mini projectors, and optical, laser and infrared instruments.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
