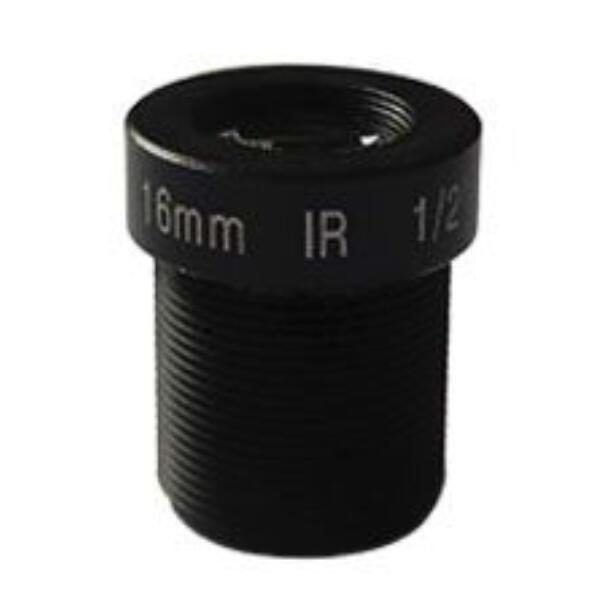

1/2" 16mm F2.0 5Megapixel M12x0.5 mount low distortion fixed focal IR lens, M12 mount cctv lens

Model 121620MP
IMAGE FORMAT 1/2"

MAX IMAGE CIRCLE Φ7.76mm
FOCAL LENGTH 16mm
F.O.V(D*H*V) 1/2”: 28.5°×22.8°×17.1°; 1/3”: 21.5°×17.2°×12.9°; 1/4”: 16.2°×13°×9.7°
RESOLUTION 5MP
APERTURE F2.0
OPTICAL DISTORTION -2.5%
MOUNT M12X0.5
IRIS Fixed
M.O.D. 0.3m

B.F.L. 7.1mm
M.B.F. 6.3mm
T.T.L. 22.1mm
DIMENSION Φ14*16.2mm
IR COLLECTION YES

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS/M12 mount option
