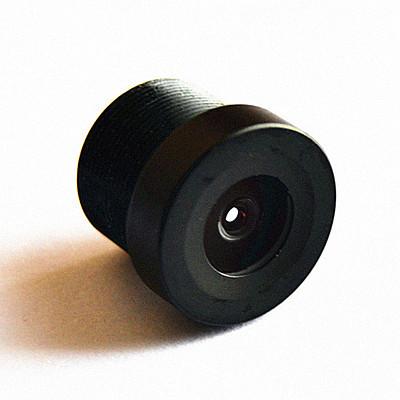

1/2.7" 3.5mm F2.8 5Megapixel S-mount 124Degree Wide-angle Board Lens for 1/2.7"~1/3.2" sensors, 3.5mm M12 lens for OV2710/OV5653/AR0330/AR3135

Model: 127035MPF(B)
FOR SENSOR 1/2.7", 1/3", 1/3.2" 5M
MAX IMAGE CIRCLE Φ7.5mm
FOCAL LENGTH(EFL) 3.5mm
F.O.V. (D*H*) OV5653: 100°*78°; OV2710: 124°*100°; PC1089K: 100°*76°
RESOLUTION 5MP
APERTURE F2.8
OPTICAL DISTORTION OV5630: <-10.0%, MI5100: <-35.0%, OV2710: <-23.5%; PC1089K: <-10.0%
MOUNT M12X0.5
F.B.L. 5.2mm
T.T.L. 18.0mm
RELATIVE ILLUMINATION 85%
CHIEF RAT ANGLE <24.5°

IR COATING 650nm AT:50%

LENS CONSTRUCTURE 5G+IR

DIMENSION Φ14x12.8mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
