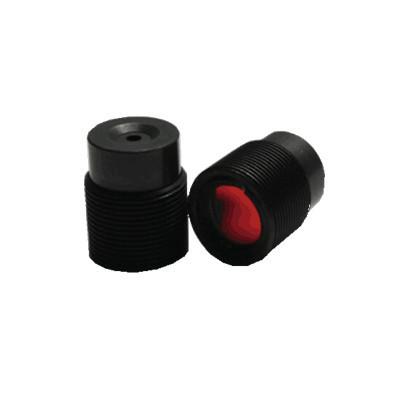

1/4" 3.04mm F2.6 Megapixel M7x0.35 mount low-distortion wide-angle lens for OV9712

MODEL 140304MPF-M7
SENSOR SIZE 1/4” (OV9712)
MAX IMAGE CIRCLE Φ5.0mm
FOCAL LENGTH(EFL) 3.04mm
F.O.V.(D*H*V) 115°*85°*51°
RESOLUTION 1.3 MP
APERTURE F2.6
OPTICAL DISTORTION <12.1%
MOUNT M7XP0.35
B.F.L. 2.36mm
F.B.L. 1.2mm
T.T.L. 9.2mm
LENS CONSTRUCTURE 4G+IR
DIMENSION Φ6*8.0mm

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12 mount is optional.
