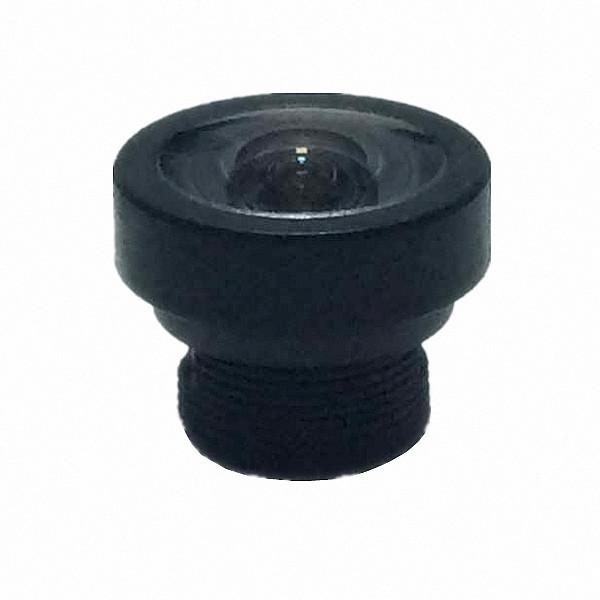

1/5" 1.02mm F2.2 VGA M7*0.35 Mount 131degree Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror, 1.02mm M7 lens for OV7740

MODEL 150102-M7
SENSOR FORMAT 1/5"
SENSOR SIZE 1/5” OV7740
FOCAL LENGTH(EFL) 1.02mm
F.O.V.(D*H*V) 131°*111°*88°
RESOLUTION VGA/0.3MP
APERTURE F2.2
TV DISTORTION <-5.2%
MOUNT M7XP0.35
B.F.L. 2.25mm
F.B.L. 1.71mm
T.T.L. 9.5mm
LENS CONSTRUCTURE 2G2P+IR(650nm)
R.I. >88%
C.R.A. <-12°

Tips:
- ***F: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12 mount is optional.
