High Definition Wide-Angle Lens

● Multi-mega pixels up to 5MP
● IR-collection for Day & Night surveillance

● Super wide-angle with HFOV up to 93°

● Glass elements and metal housing
● IR cut option
● Mount option: CS/M12x0.5

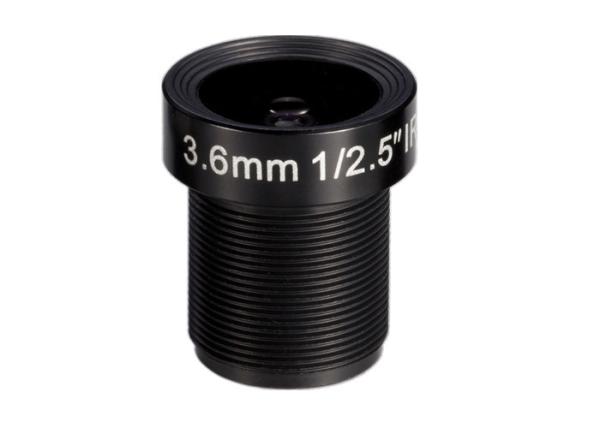

1/2.5" 3.6mm F1.8 1080P Megapixel M12x0.5 S-mount 126degrees wide angle Lens, 3.6mm fixed focal M12/CS lens

Model 12503618MP
IMAGE FORMAT 1/2.5"
SENSOR CCD/CMOS
FOCAL LENGTH 4mm
RESOLUTION MP
F.O.V.(D*H*V) 126°*93°*67°
APERTURE F1.8
EFFECTIVE APERTURE Φ10.9mm(front), Φ5.0mm(rear)

TV DISTORTION <52%
IRIS Fixed
M.O.D. 0.1m
MOUNT M12xP0.5 - 6g
B.F.L. 7.73mm
LENS CONSTRUCTURE 6-5
DIMENSION Φ15*17.5mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS mount available
