Brand Name : | CCOM LENS |
Model Number : | 1270365MPF-M12(W) |
Payment Terms : | T/T, Western Union, MoneyGram, Paypal |
Supply Ability : | Samples available |
Delivery Time : | 2-7 work days |
Waterproof 1/2.7" 3.65mm 5Megapixel M12x0.5 mount 120Degree Wide Angle Lens, Automotive camera lens, OV4689/OV2710/IMX122/OV8858 wide angle lens, megapixel wide-angle lens for sport DV/Car DVR.
MODEL 1270365MPF-M12(W)
SENSOR SIZE 1/2.7" CMOS/CCD
MAX IMAGE CIRCLE Ø 8.2mm
FOCAL LENGTH 3.65mm
F.O.V. (D*H*V) OV2710 H=96.5° V=52.2° D=120°, OV4689 H=90° V=50°
D=110°, AR0330 H=83.1° V=47° D=105°,
RESOLUTION 5MP
APERTURE F1.8
DISTORTION OV2710: H -8.18%, V -28.06%
MOUNT M12x0.5
B.F.L.(O) 5.48mm
B.F.L.(M) 4.71mm
T.T.L. 15.91mm

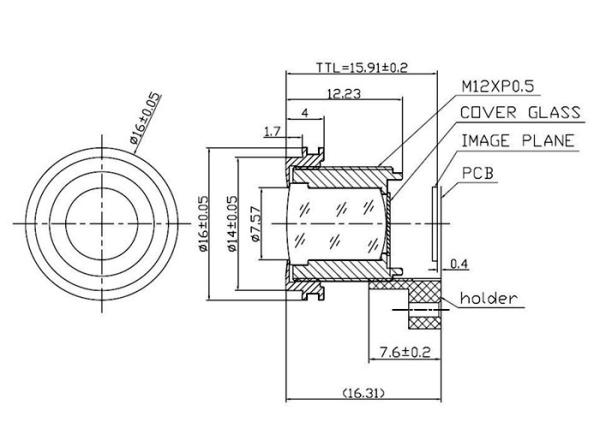

DIMENSION Φ16x12.23mm
LENS CONSTRUCTURE 6G+IR
WATERPROOF IP67
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- M12/M9 mount option
- 650nm/850nm/940nm IR filter optional
![]() |
